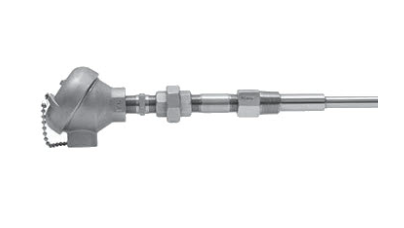

Minco AS5140/AS5141系列工業級帶熱套RTD溫度傳感器

發布時間：2026-03-02 08:58:29 瀏覽：232

　　Minco AS5140單元件鉑RTD和AS5141雙元件鉑RTD產品屬于 RTD(電阻溫度檢測器)溫度測量傳感器組件，專為在液體流動環境和高壓工況中實現快速、精確的溫度測量而設計，并包含保護用的熱套(thermowell)。

Minco AS5140/AS5141系列工業級帶熱套RTD溫度傳感器

　　主要技術參數

　　這些 RTD 傳感器的通用規格如下：

　　元件類型：鉑電阻(Platinum)，提供單元件(Single)和雙元件(Dual)版本。

　　阻值： 100 Ω ±0.1% @ 0°C(符合 EN60751, Class B 標準)。

　　溫度系數 (TCR)： 0.00385 Ω/Ω/°C。

　　引線數量： 3 線制。

　　工作溫度范圍寬泛：-50 °C 到 +260 °C(-58 °F 到 +500 °F)。

　　連接頭：標準工業級鋁制連接頭。

　　螺紋規格：工藝螺紋和導線管螺紋均為 1/2-14 NPT。

　　主要特征與優勢

　　尖端敏感設計：傳感探頭尖端采用銅合金材質制作，可比全不銹鋼設計更快地響應溫度變化，提高熱傳導效率。

　　彈簧壓緊結構：彈簧載入式支架保證傳感器探頭始終與熱套底部緊密接觸，從而優化熱傳導、提升響應速度與準確度。

　　高精度鉑 RTD 元件：內部采用高精度鉑元素 RTD，具有優秀的重復性和線性響應。

　　耐壓性能優越：搭配 316 不銹鋼熱套可承受高流速及高壓力環境，適合工業流程應用。

　　標準工業接線頭：采用常見工業規格的接線頭，便于安裝與現場布線。

　　可選信號轉換器：可配置將傳感器輸出轉換為 4–20 mA 或 HART? 通信信號，便于遠程監控與自動化控制系統接入。

　　工作溫度范圍寬泛：-50 °C 到 +260 °C(-58 °F 到 +500 °F)。

　　質保：典型產品提供三年保修。

　　可選配置

　　用戶可以根據具體需求選擇不同的物理規格：

　　保護套管長度 (U)：提供從 1.5 英寸到 15.0 英寸不等的多種長度選擇。

　　延伸部分 (Extension)：可選“無延伸(No Extension)”或“活接頭/短節延伸(Union/Nipple Extension)”。

　　帶熱套的尖端敏感 RTD 的示例具體型號及其部分規格

Product	Element Type	Resistance	TCR	Extension	Thermowell Length ''U'' (in)	# Leads	Process Thread
AS5140PD20Z1A1U	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	2	3	1/2-14 NPT
AS5140PD45Z1A1U	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	4.5	3	1/2-14 NPT
AS5140PD100Z1A1N	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	10	3	1/2-14 NPT
AS5140PD100Z1A1U	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	10	3	1/2-14 NPT
AS5140PD105Z1A1N	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	10.5	3	1/2-14 NPT
AS5140PD105Z1A1U	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	10.5	3	1/2-14 NPT
AS5140PD120Z1A1N	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	12	3	1/2-14 NPT
AS5140PD120Z1A1U	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	12	3	1/2-14 NPT
AS5140PD150Z1A1N	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	15	3	1/2-14 NPT
AS5140PD150Z1A1U	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	15	3	1/2-14 NPT
AS5140PD15Z1A1N	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	1.5	3	1/2-14 NPT
AS5140PD15Z1A1U	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	1.5	3	1/2-14 NPT
AS5140PD20Z1A1N	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	2	3	1/2-14 NPT
AS5140PD25Z1A1N	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	2.5	3	1/2-14 NPT
AS5140PD25Z1A1U	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	2.5	3	1/2-14 NPT
AS5140PD30Z1A1N	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	3	3	1/2-14 NPT
AS5140PD30Z1A1U	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	3	3	1/2-14 NPT
AS5140PD40Z1A1N	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	4	3	1/2-14 NPT
AS5140PD40Z1A1U	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	4	3	1/2-14 NPT
AS5140PD45Z1A1N	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	4.5	3	1/2-14 NPT
AS5140PD60Z1A1N	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	6	3	1/2-14 NPT
AS5140PD60Z1A1U	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	6	3	1/2-14 NPT
AS5140PD75Z1A1N	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	7.5	3	1/2-14 NPT
AS5140PD75Z1A1U	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	7.5	3	1/2-14 NPT
AS5140PD90Z1A1N	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	9	3	1/2-14 NPT
AS5140PD90Z1A1U	Platinum, Single	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	9	3	1/2-14 NPT
AS5141PD100Z1A1N	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	10	3	1/2-14 NPT
AS5141PD100Z1A1U	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	10	3	1/2-14 NPT
AS5141PD105Z1A1N	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	10.5	3	1/2-14 NPT
AS5141PD105Z1A1U	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	10.5	3	1/2-14 NPT
AS5141PD120Z1A1N	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	12	3	1/2-14 NPT
AS5141PD120Z1A1U	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	12	3	1/2-14 NPT
AS5141PD150Z1A1N	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	15	3	1/2-14 NPT
AS5141PD150Z1A1U	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	15	3	1/2-14 NPT
AS5141PD15Z1A1N	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	1.5	3	1/2-14 NPT
AS5141PD15Z1A1U	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	1.5	3	1/2-14 NPT
AS5141PD20Z1A1N	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	2	3	1/2-14 NPT
AS5141PD20Z1A1U	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	2	3	1/2-14 NPT
AS5141PD25Z1A1N	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	2.5	3	1/2-14 NPT
AS5141PD25Z1A1U	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	2.5	3	1/2-14 NPT
AS5141PD30Z1A1N	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	3	3	1/2-14 NPT
AS5141PD30Z1A1U	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	3	3	1/2-14 NPT
AS5141PD40Z1A1N	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	4	3	1/2-14 NPT
AS5141PD40Z1A1U	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	4	3	1/2-14 NPT
AS5141PD45Z1A1N	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	4.5	3	1/2-14 NPT
AS5141PD45Z1A1U	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	4.5	3	1/2-14 NPT
AS5141PD60Z1A1N	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	6	3	1/2-14 NPT
AS5141PD60Z1A1U	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	6	3	1/2-14 NPT
AS5141PD75Z1A1N	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	7.5	3	1/2-14 NPT
AS5141PD75Z1A1U	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	7.5	3	1/2-14 NPT
AS5141PD90Z1A1N	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	No Extension	9	3	1/2-14 NPT
AS5141PD90Z1A1U	Platinum, Dual	100Ω ±0.1% at 0°C (Meets EN60751, Class B)	0.00385 Ω/Ω/°C	Union/Nipple Extension	9	3	1/2-14 NPT

Minco是專注于為嚴苛應用提供溫度傳感與控制、熱加熱、柔性電路及集成解決方案。其產品廣泛應用于醫療、航空航天、半導體、能源等多個行業。深圳市立維創展科技有限公司優勢分銷Minco產品，歡迎咨詢了解。
