- 產品詳情
Sensata Technologies 的 LP35 系列是一款專為工業自動化、電機控制、重載機械及惡劣環境應用設計的低外形編碼器。產品采用緊湊型90mm機身設計，在有限安裝空間內依然能夠提供高精度位置反饋和速度檢測能力。
LP35支持增量式與絕對值兩種輸出方式，最高可提供10000 PPR增量分辨率或16位絕對值分辨率，滿足高精度運動控制需求。同時具備IP66防護等級、優異的抗沖擊和抗振動性能，可長期穩定運行于嚴苛工業環境。
產品特點
超薄低外形設計，節省安裝空間
支持增量式與SSI絕對值輸出
增量分辨率最高10000 PPR
絕對值分辨率最高16 Bit(65536位置)
IP66高防護等級
工作溫度范圍 -40°C至+100°C
抗沖擊能力高達300G
抗振動能力高達20G
支持TTL、HTL及SSI接口
提供M12連接器、電纜或接線盒輸出方式
最高轉速6000 RPM
支持空心軸、盲孔軸、實心軸及集成聯軸器結構
主要參數
| 參數 | 規格 |
| 產品型號 | LP35 |
| 編碼器類型 | 增量式 / 絕對值 |
| 增量分辨率 | 最高10000 PPR |
| 絕對值分辨率 | 最高16 Bit |
| 防護等級 | IP66 |
| 工作溫度 | -40°C ~ +100°C |
| 最高轉速 | 6000 RPM |
| 電源電壓 | 5~30 VDC |
| 輸出接口 | TTL、HTL、SSI |
| 外殼尺寸 | ?90mm × 26mm |
| 抗沖擊 | 300G |
| 抗振動 | 20G |

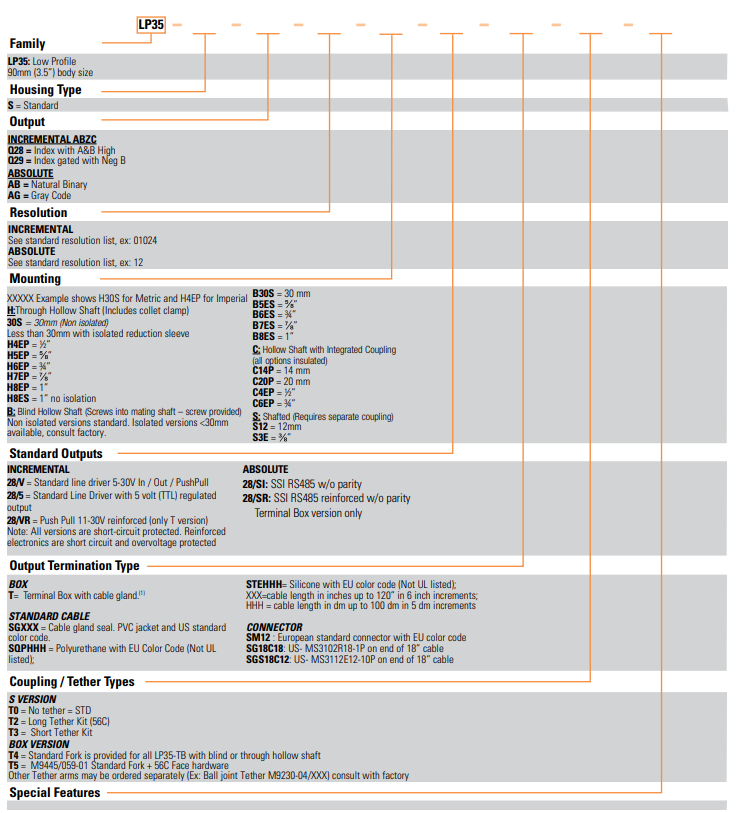

型號
| Product Number | Model No. | Mechanical Mounting Configuration | Version | Resolution | Tether Part No |
| 01301-005 | LP35-S-Q29-01024-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 1024 | M9445/059-02 |
| 01301-006 | LP35-S-Q29-02048-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 2048 | M9445/059-02 |
| 01301-007 | LP35-S-Q29-00500-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 500 | M9445/059-02 |
| 01301-008 | LP35-S-Q29-02000-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 2000 | M9445/059-02 |
| 01301-009 | LP35-S-Q29-02500-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 2500 | M9445/059-02 |
| 01301-010 | LP35-S-Q29-01000-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 1000 | M9445/059-02 |
| 01301-011 | LP35-S-Q29-00100-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 100 | M9445/059-02 |
| 01301-012 | LP35-S-Q29-05000-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | 5000 | M9445/059-02 |
| 01300-008 | LP35-S-Q29-01024-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 1024 | M9445/053-02 |
| 01300-010 | LP35-S-Q29-00500-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 500 | M9445/053-02 |
| 01300-011 | LP35-S-Q29-02000-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 2000 | M9445/053-02 |
| 01300-012 | LP35-S-Q29-02500-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 2500 | M9445/053-02 |
| 01300-013 | LP35-S-Q29-01000-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 1000 | M9445/053-02 |
| 01300-014 | LP35-S-Q29-00100-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 100 | M9445/053-02 |
| 01300-015 | LP35-S-Q29-05000-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 5000 | M9445/053-02 |
| 01300-016 | LP35-S-Q29-02048-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | 2048 | M9445/053-02 |
| 01313-001 | LP35-S-P-XP-H30S-28/V-T-T5 | Thru hollow shaft, 30mm bore | Compact, Term Box. | Programmable | M9445/059-02 |
| 01313-002 | LP35-S-P-XP-S3E-28/V-T-T0 | 3/8" shafted | Compact, Term Box. | Programmable | None |
| 01312-001 | LP35-S-P-XP-H30S-28/V-SM12-T2 | Thru hollow shaft, 30mm bore | Compact, SM12 conn. | Programmable | M9445/053-02 |
| 01312-002 | LP35-S-P-XP-S3E-28/V-SM12-T0 | 3/8" shafted | Compact, SM12 conn. | Programmable | None |
